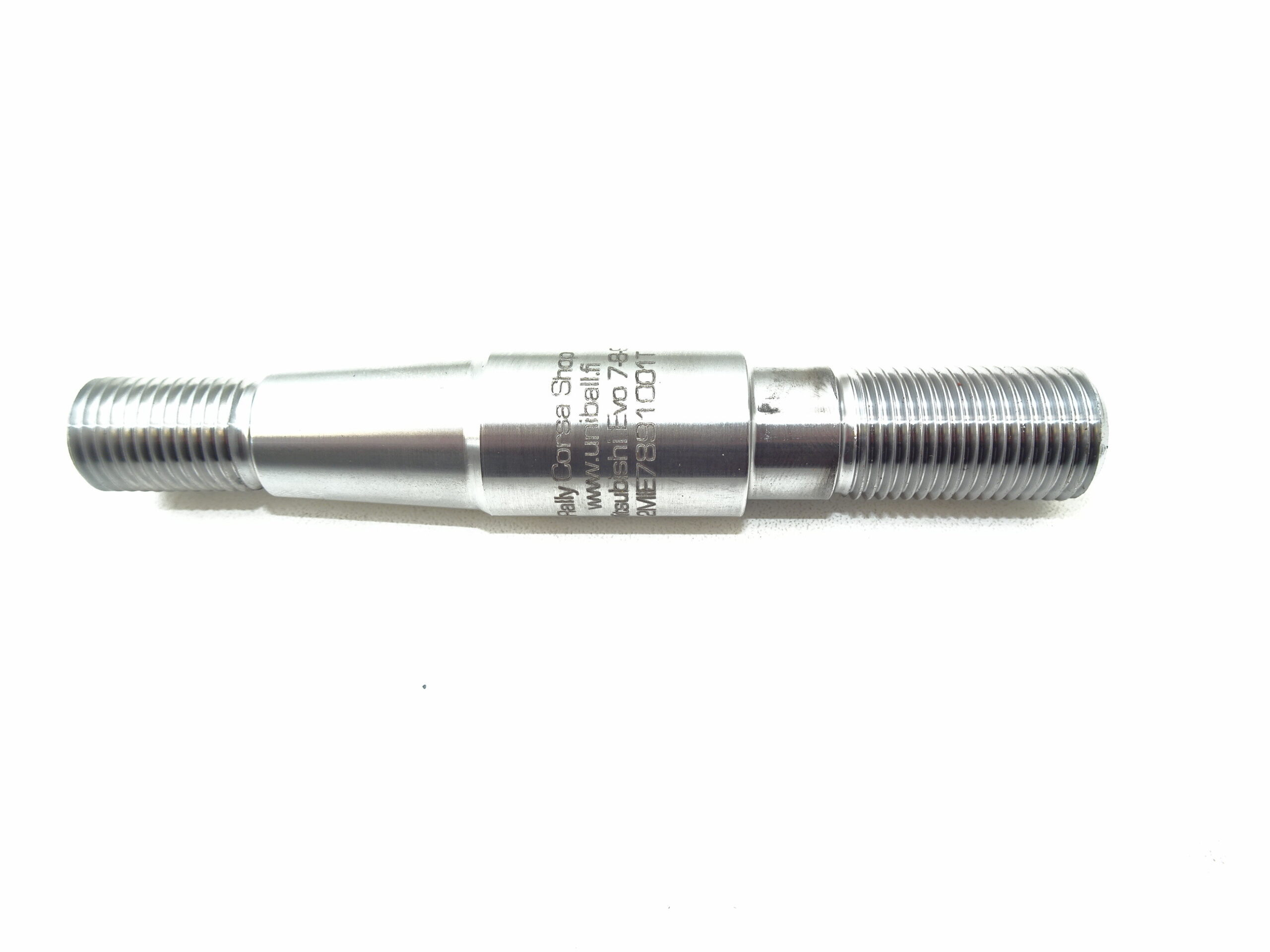

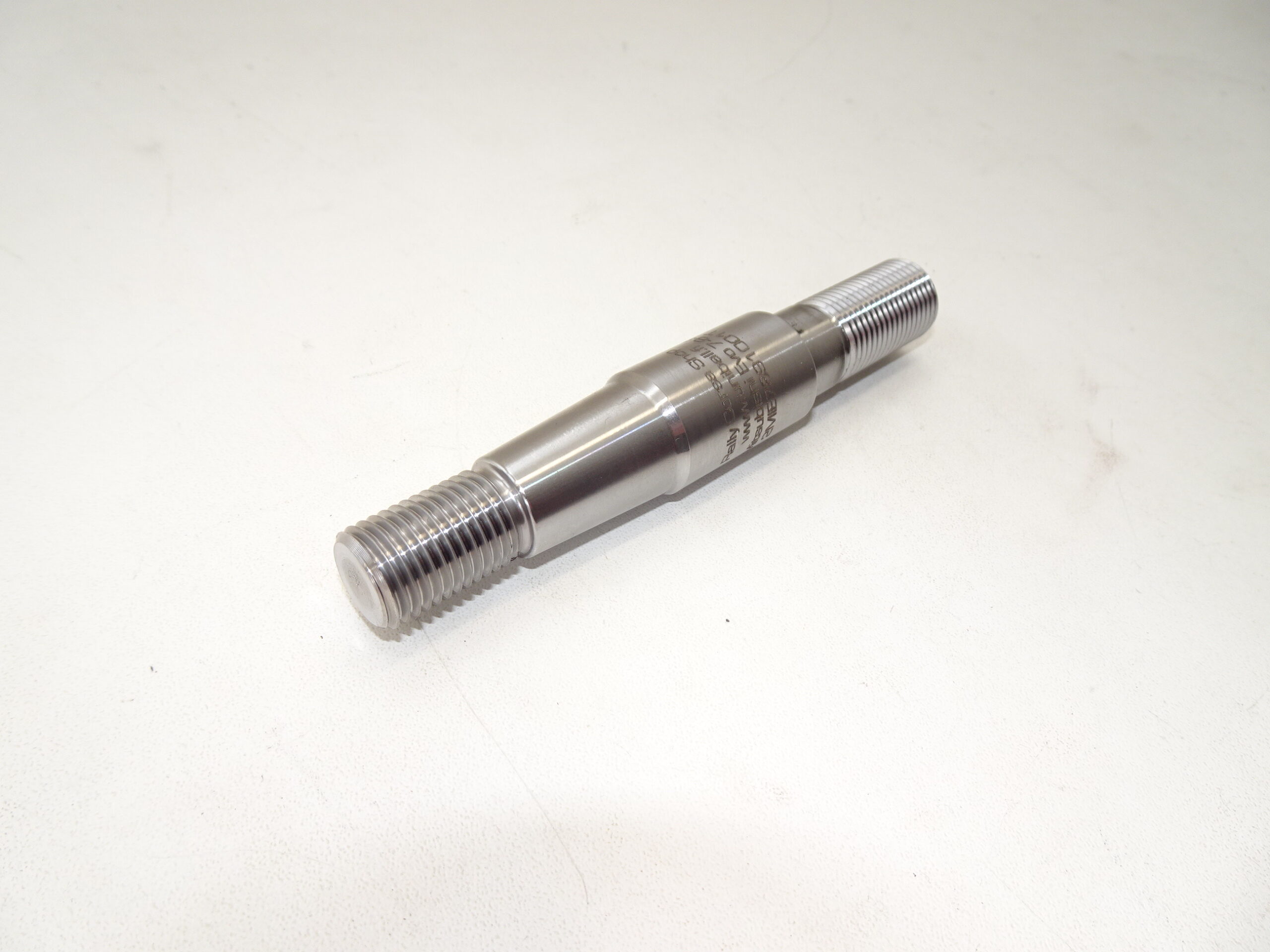

15.5/18mm balljoint pin Mitsubishi EVO rear

Description

This pin fits straight to spherical with 20mm inner diameter. The shape is exactly same with the spherical ball, so it allows maximum movement. In the price you get one pin + locknuts + bottom bush.

• material MOC410 (34cromo4) which is stronger than Cromo 4130 (25cromo4). CNC machined.
• 20mm spherical ID, 21mm long
• 113mm max length
• 12×1.5mm or 14×1.5mm lock nut on top (thread aprox 20mm)
• Cone OD in thinnest area 15.5mm and at largest area 18mm, cone length 23mm
• bottom lock nut M16x1.5mm
• comes with bottom bush

Fits to:

• Mitsubishi EVO 6-9, all rear suspension balljoints
