Description
This part fits straight in to 20mm ID spherical joint. The radius of the shape against the ball is as 20mm joint ball has.
- material 25cromo4 cromoly steel. CNC machined, no sharp corners.
- 20mm shaft
- 110mm max length
- 12×1.5mm nylock on top (20mm long thread)
- cone is 13mm from the narrow end and 16,5mm at the thick end (cone length 31mm)
- the spherical joint mounting 20mm diameter and 21mm long
- bottom locknut M16x1.5

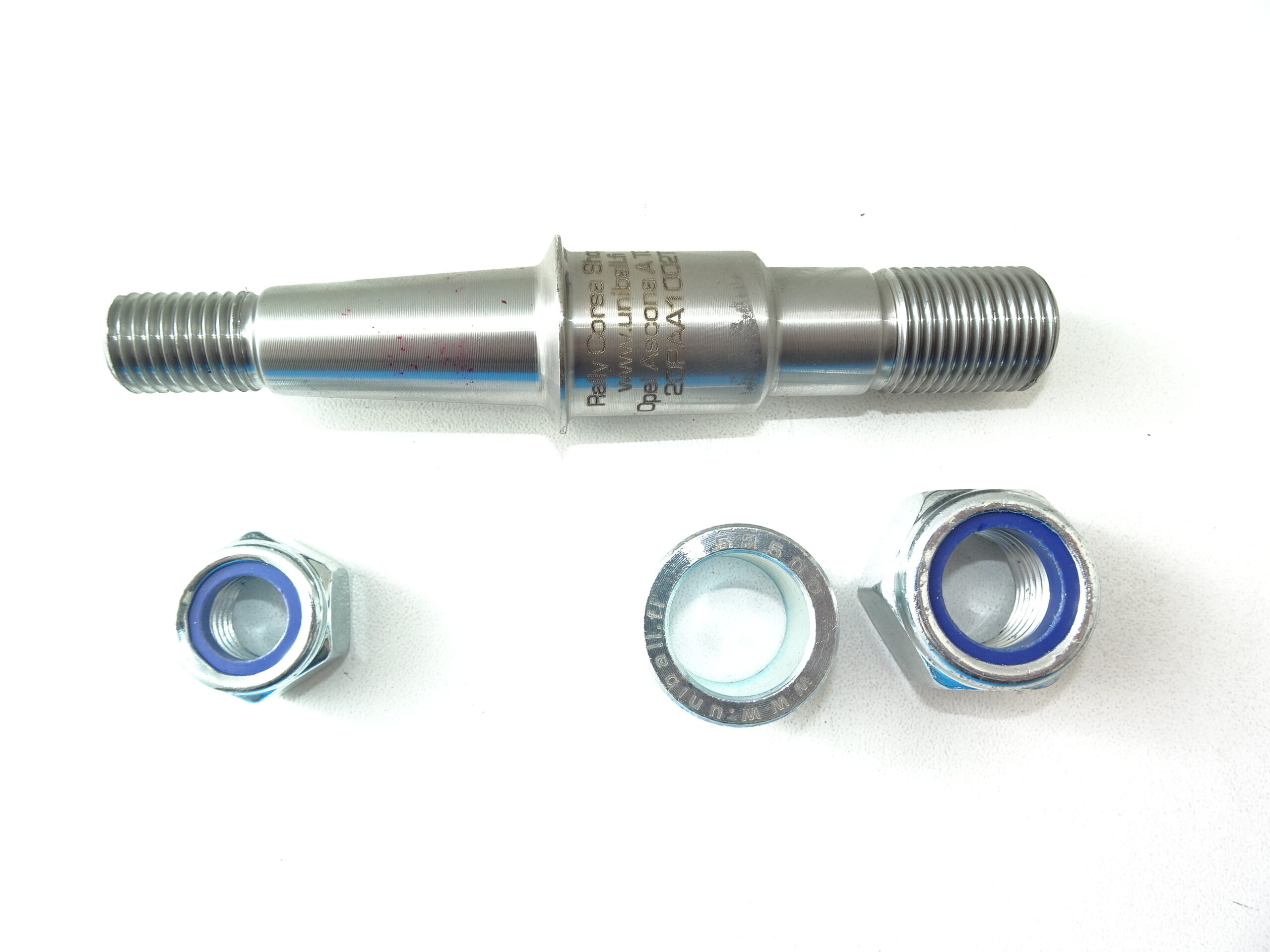

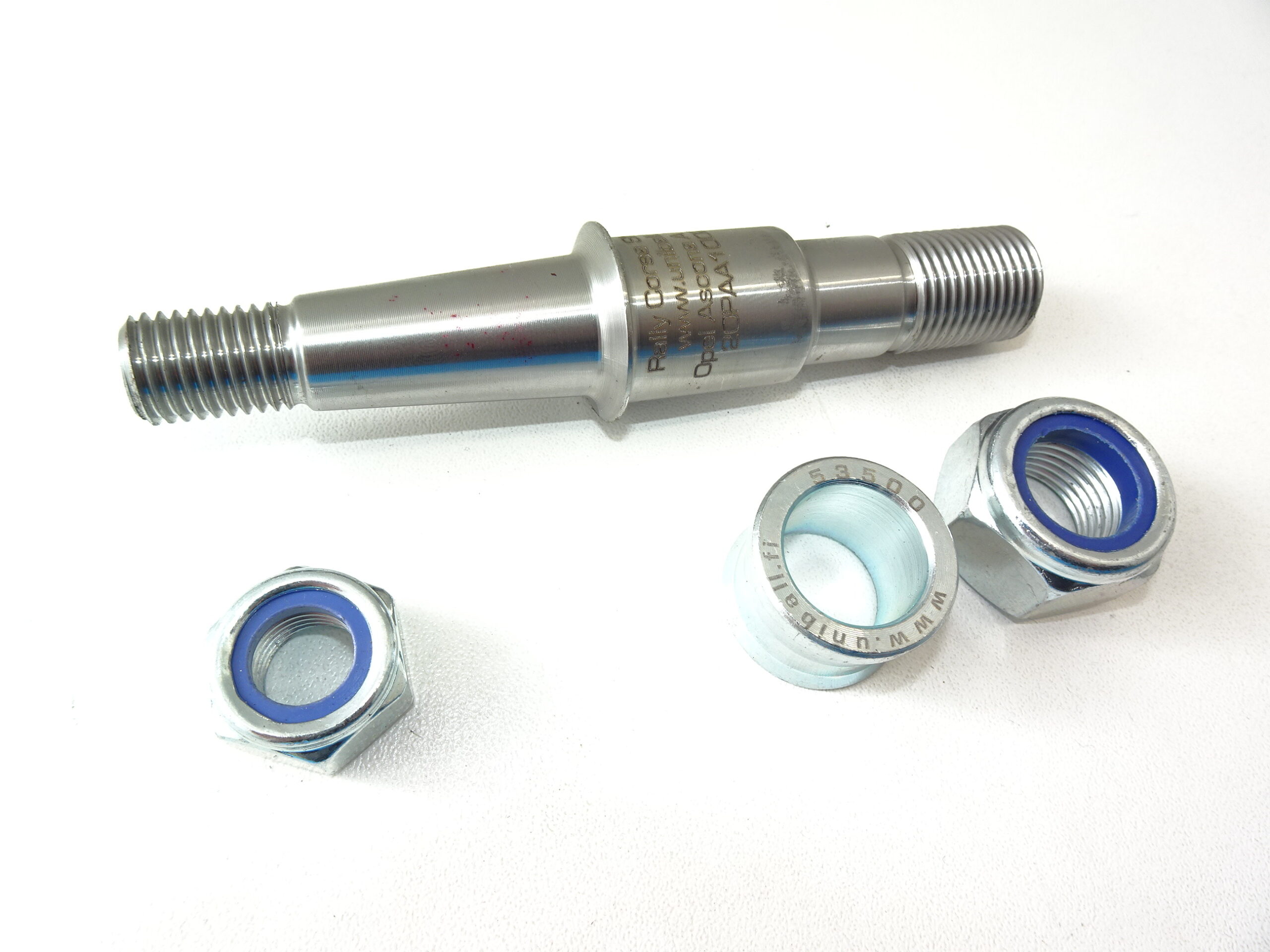

- in the pictures not electroplated, but will be
Nylock nuts included as the spherical bottom bush.
This fits atleast to following cars.
- Opel Ascona/Manta B front top arm joint
- sold per each
