Description

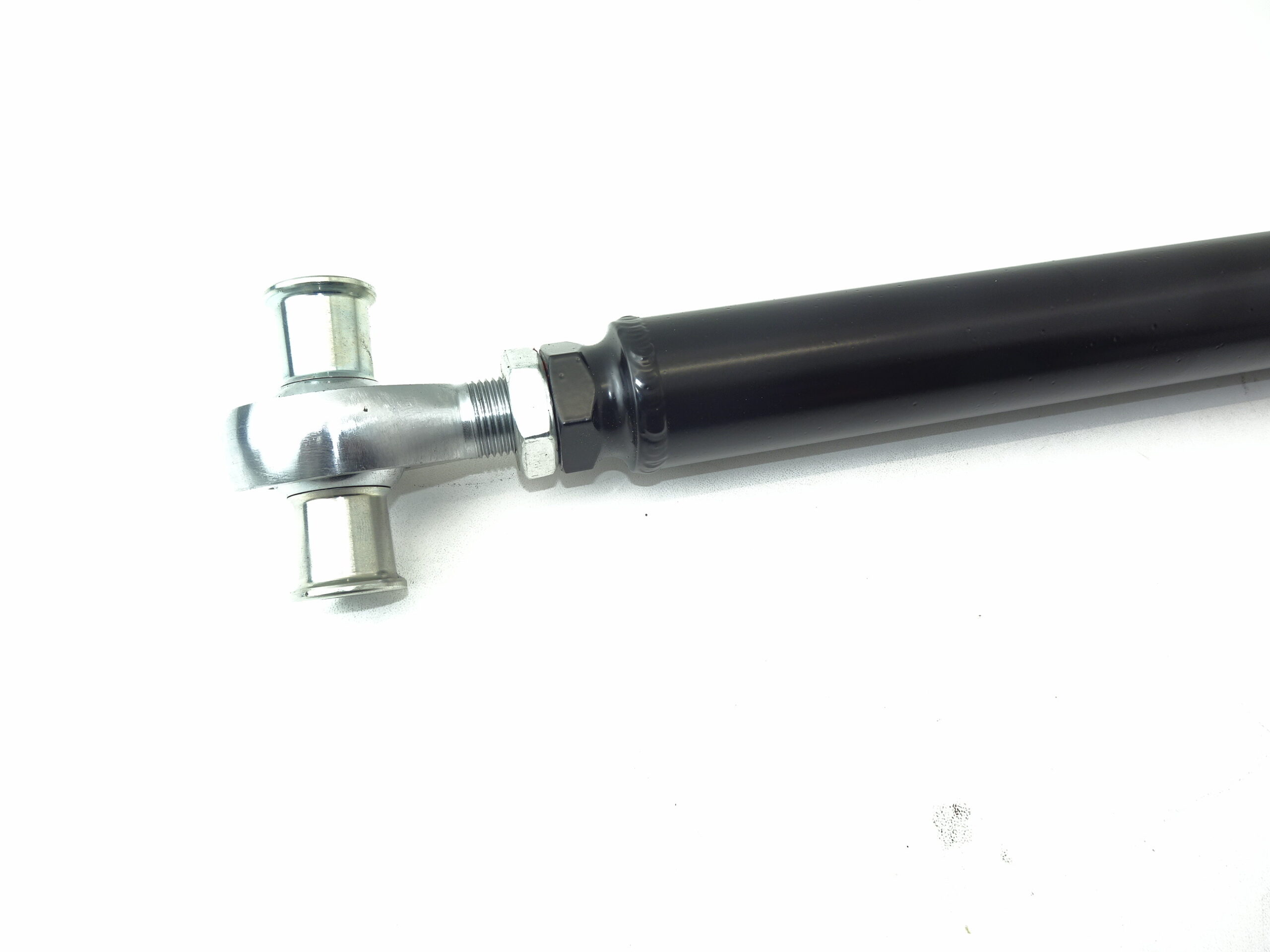

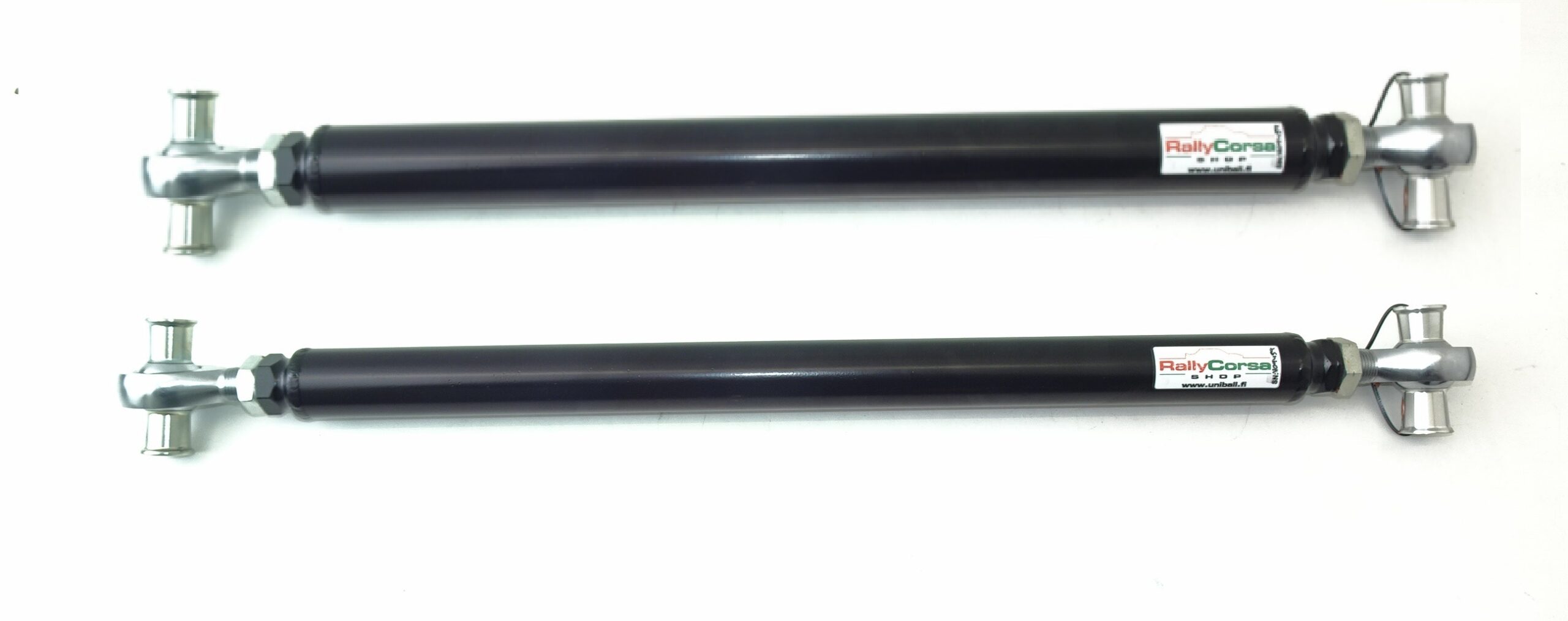

Wrong photos!
Volvo 740 rear axle longitudinal arms which are positioned in center of rear axle.
– 35x2mm seamless cromo tube
– M18x1.5 cromo uniball on both ends with counter threads, i.e. adjustable in place
– Joints reduced to your desired bolt size, default 12mm
– Joints supplied assembled to your desired mounting size
– Powder coated satin black
– Certificate of manufacture on request
– Includes 1pc shorter upper arm and 1pc longer lower arm
When ordering, please provide this information if it differs from the standard. Standards approx. 340mm and 403mm
– length of links measured from hole to hole, the adjustment is set halfway to the given dimension, leaving a margin of +- 20mm
– desired bolt hole sizes
– desired mounting dimensions
– e.g. body lugs 50mm and 12mm bolts, tail lugs 45mm upper lug and 48mm lower lug, upper with 12mm bolt and lower with 14mm bolt.
– if you need a certificate of manufacture for the roadworthiness test, please indicate the frame number and make/model of the car
