Description

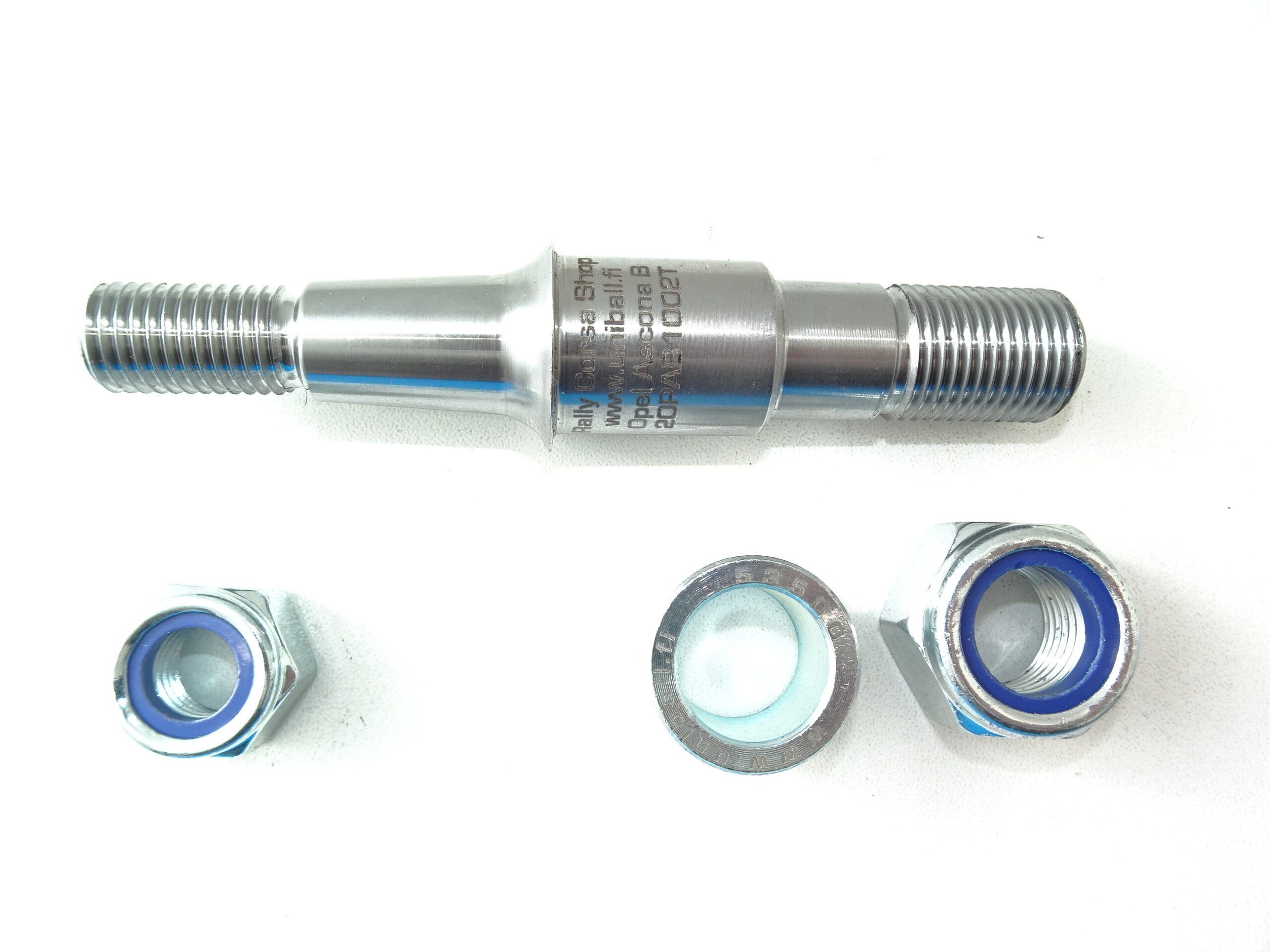

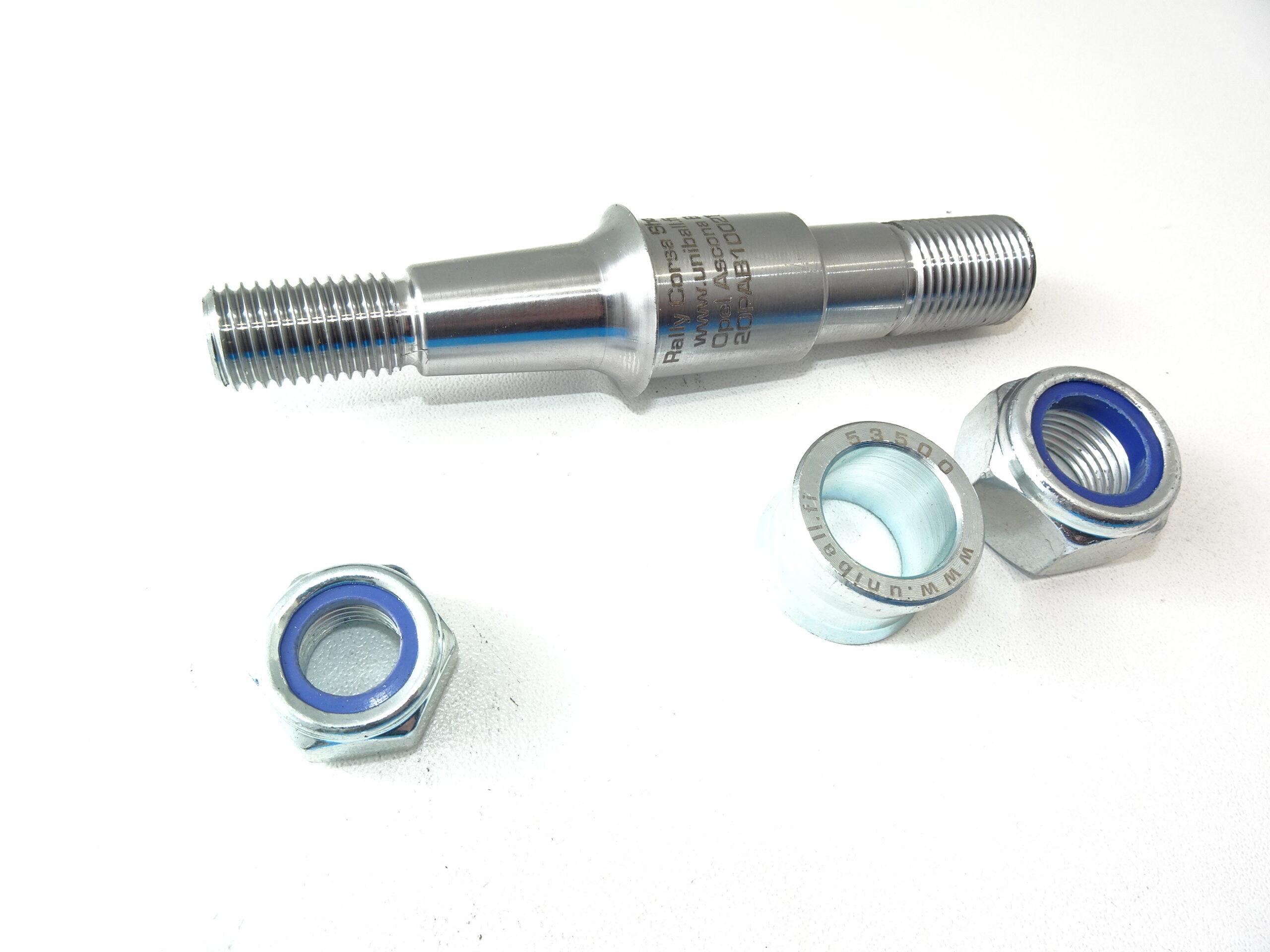

This pin fits straight to spherical with 20mm inner diameter. The shape is exactly same with the spherical ball, so it allows maximum movement. In the price you get one pin + locknuts + bottom bush.
- material MOC410 (34cromo4) which is stronger than Cromo 4130 (25cromo4). CNC machined.
- 20mm spherical ID, 21mm long
- 108mm max length
- 12×1.5mm or 14×1.5mm lock nut on top (thread aprox 20mm)
- Cone OD in thinnest area 13mm and at largest area 15mm, cone length 17mm
- bottom lock nut M16x1.5mm
- comes with bottom bush
Fits to:
- Opel Ascona/Manta B front suspension top arm
- Vauxhal Cavalier front suspension top arm
