16/18mm Balljoint coneshaft Opel Ascona B bottom

Description

This part fits straight in to 20mm ID spherical joint. The radius of the shape against the ball is as 20mm joint ball has.

• material MOC 410 cromoly steel, stronger than CroMo4130! CNC machined, no sharp corners.
• 20mm shaft
• 110mm max length
• 12×1.5mm nylock on top (20mm long thread)
• cone is 16mm from the narrow end and 18m at the thick end (cone length 19mm)
• under the cone aprox 30mm diameter and 9mm section
• the spherical joint mounting 20mm diameter and 21mm long
• bottom locknut M16x1.5

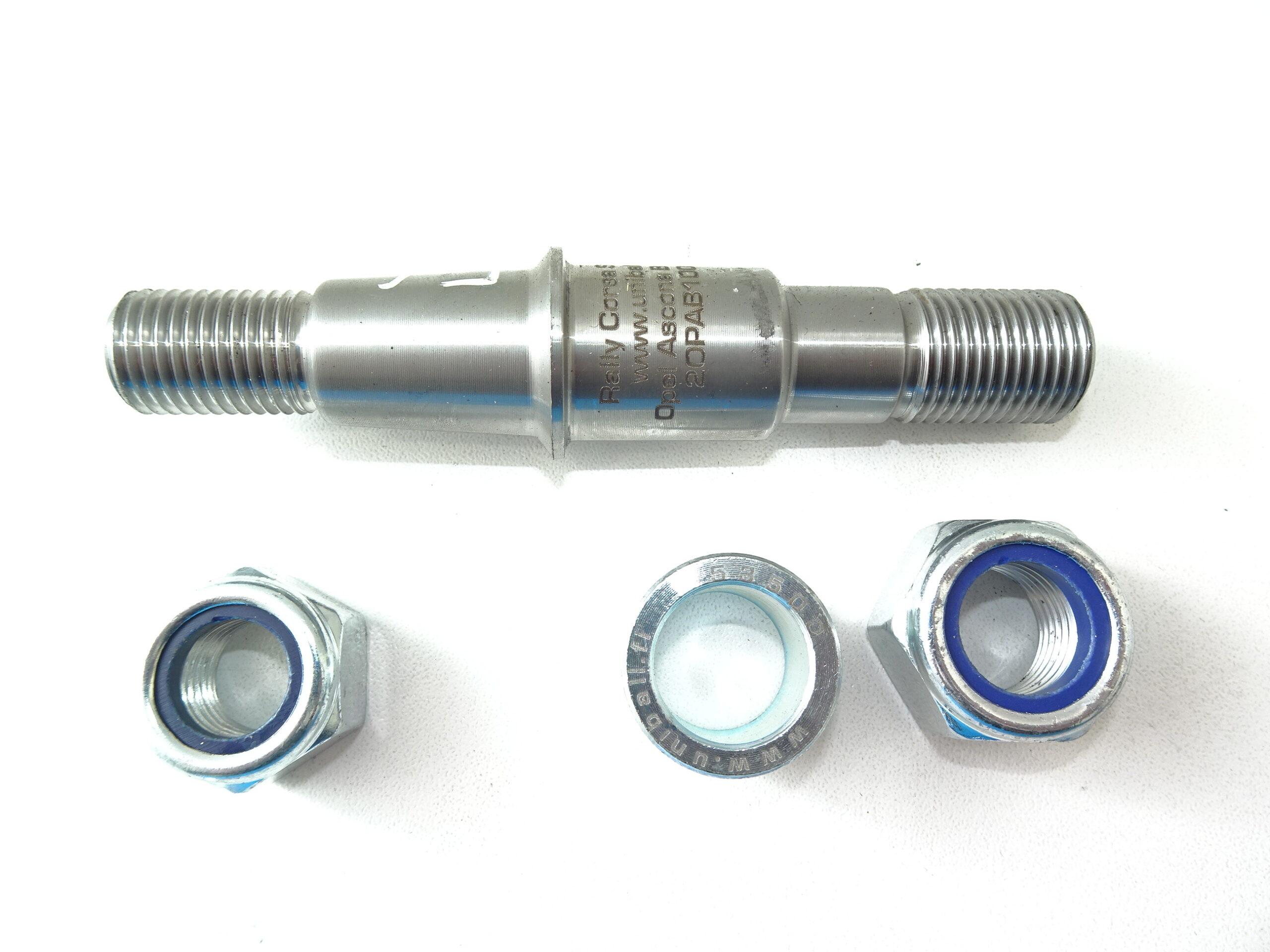

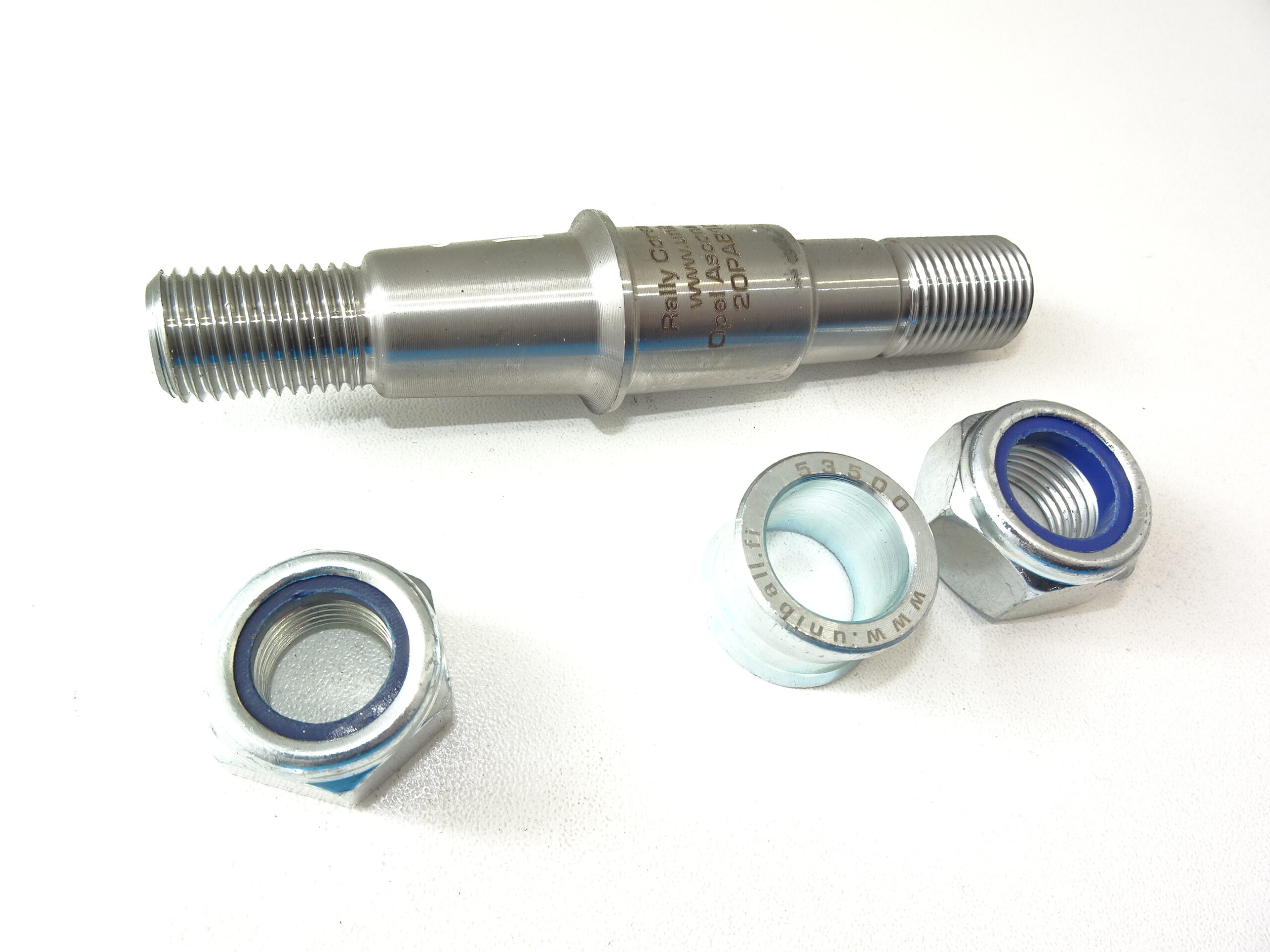

• in the pictures not electroplated, but will be

Nylock nuts included as the spherical bottom bush.

This fits atleast to following cars.

• Opel Ascona/Manta B front TCA bottom joint
