Suzuki Swift SA PRO front suspension arms

Description

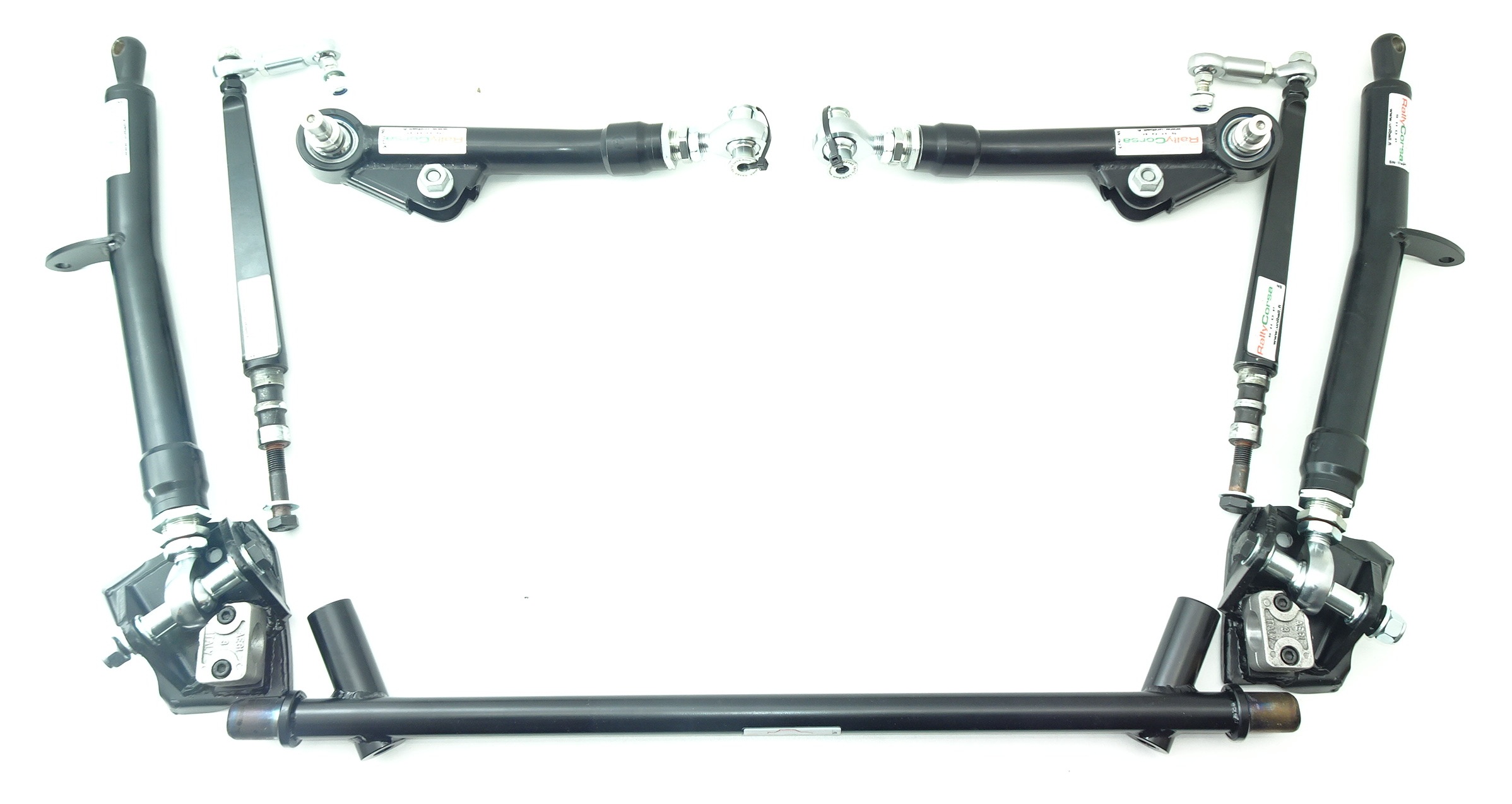

Motorsport-grade front suspension kit for Suzuki Swift SA Gti (excluding standard SA models).

All suspension arms are fully adjustable in-place without removal. A PRO double-threaded bush is utilized at the joint between the radius rod and lower control arm, as well as at the lower control arm body mount. The kit features a fully adjustable bladed anti-roll bar designed for rally use. A stiffer anti-roll bar for tarmac use is available upon request.

Features

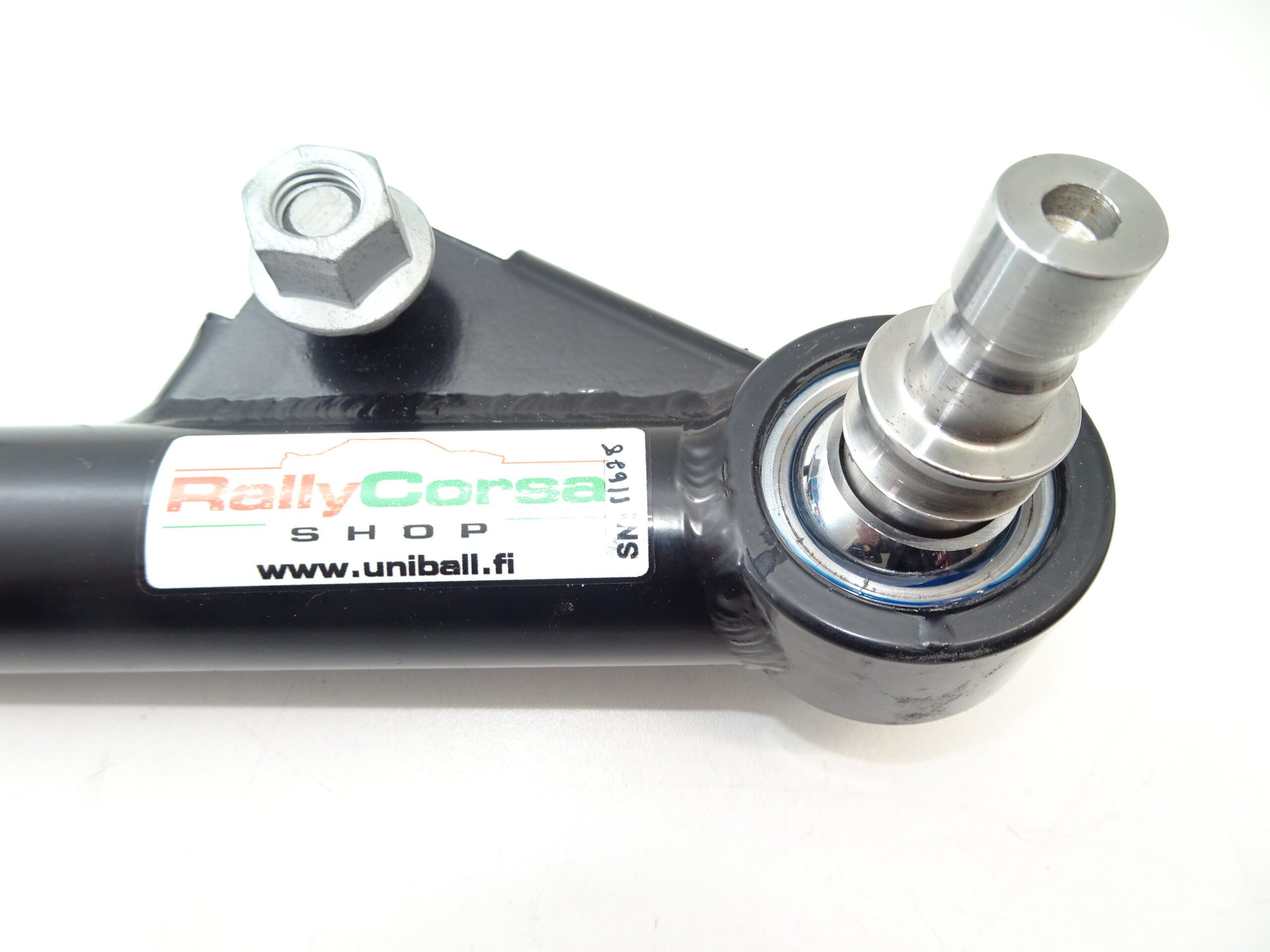

• Lower Control Arm: M16x1.5 4130 CrMo spherical bearing on the chassis side. 40/20 mm stemless spherical bearing on the wheel side.
• Steering Knuckle Mount: 4130 CrMo tapered pin on the wheel-side joint.

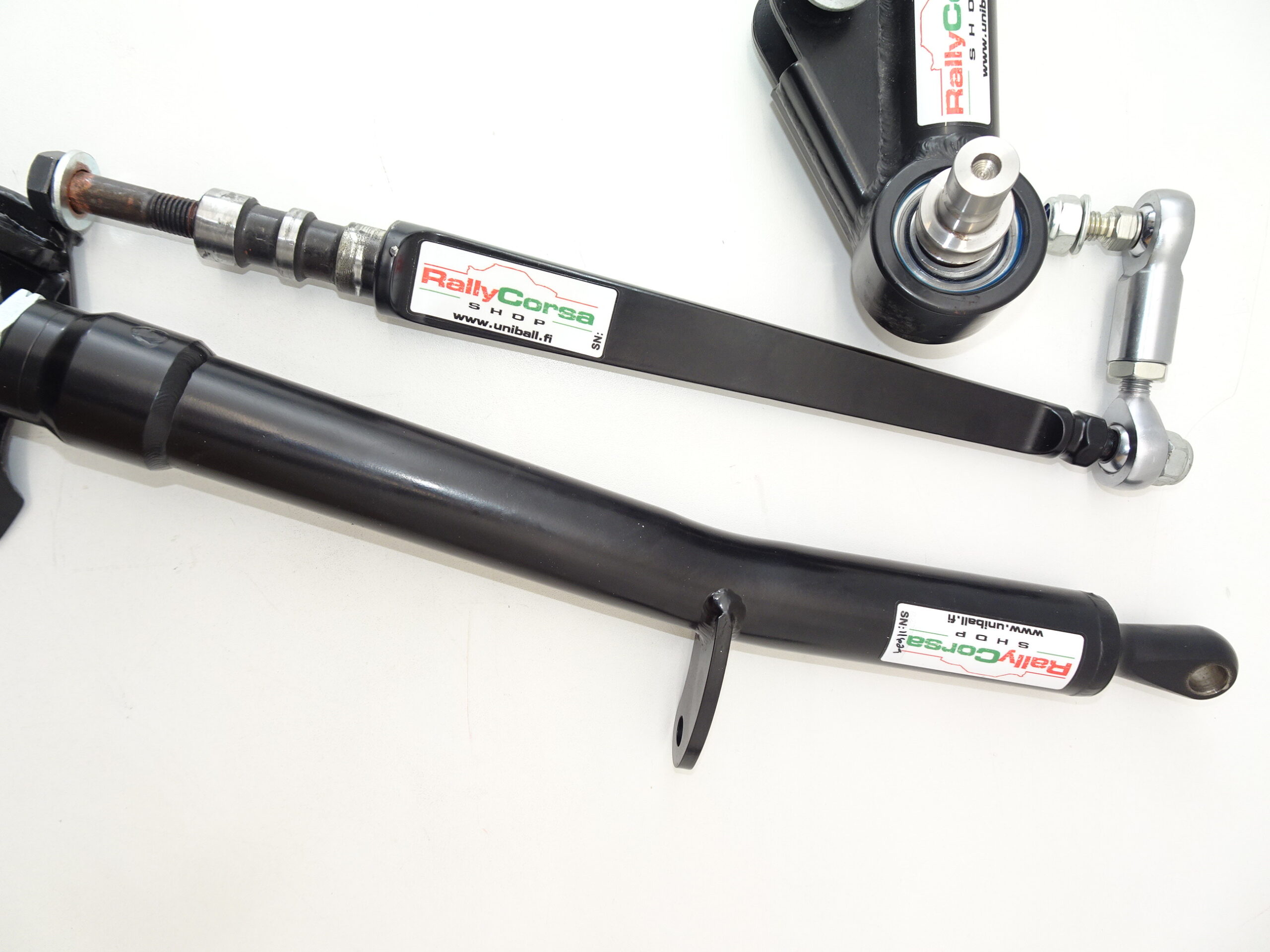

• Radius Rod: 16 mm 4130 CrMo spherical bearing on the chassis side.

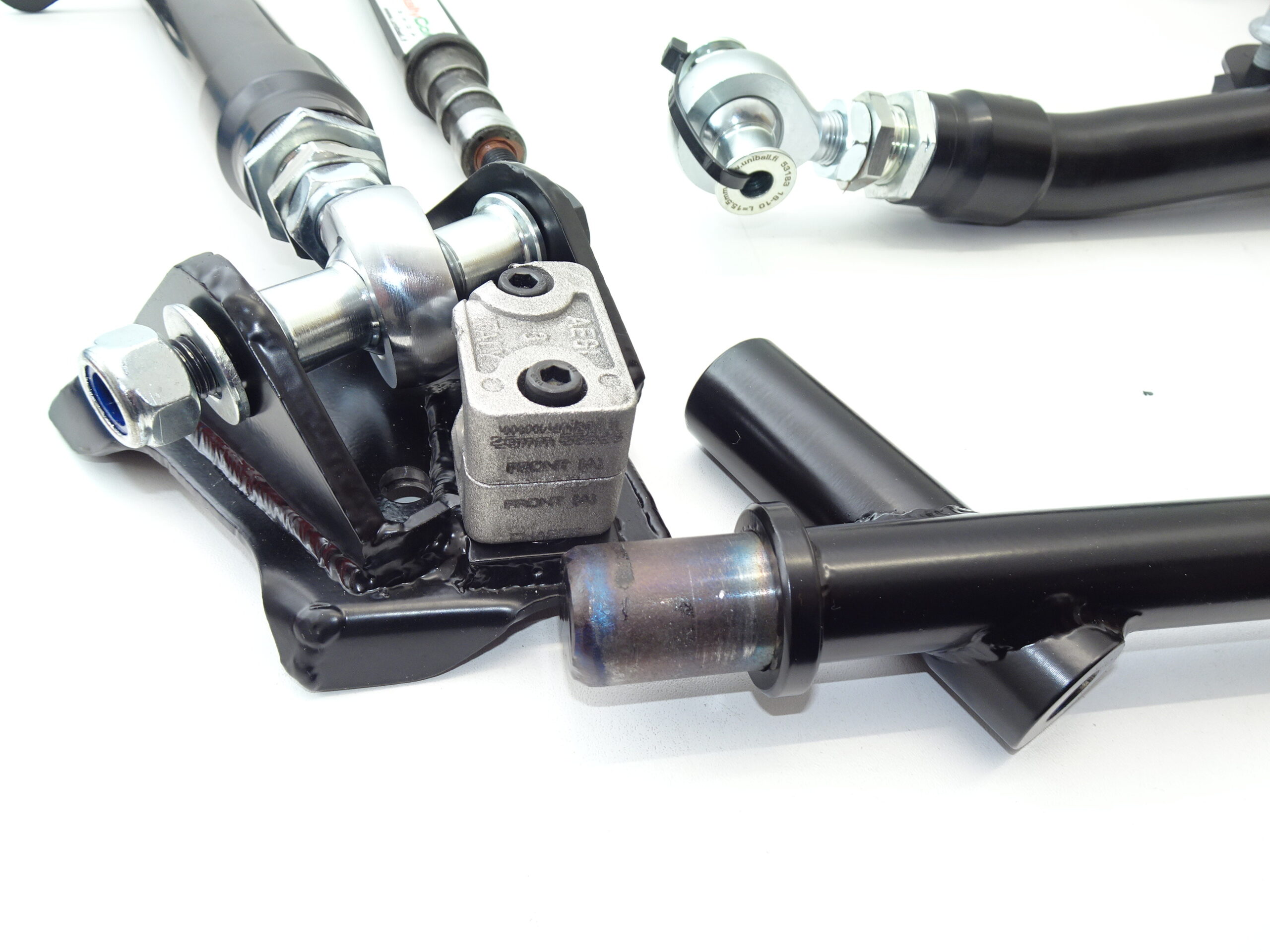

• Brackets: Full 4130 CrMo construction. Includes mounting points for radius rods and the anti-roll bar.
• Anti-Roll Bar: Fully adjustable bladed anti-roll bar kit with heat-treated spring steel blades. Adjustable links.
• Fitment: Suzuki Swift SA Gti. (Note: SA and SA Gti chassis differ regarding radius rod mounting points. A separate kit is available for standard SA models).
