VW Polo 6N2 rear toe-arms

Description

Homologated adjustable rear toe control arms for VW Polo 6N2 motorsport applications.

This rear toe arm kit is engineered for Volkswagen Polo 6N2 rear beam axle setups in circuit racing and rallying, manufactured in accordance with the vehicle homologation certificate. These arms are homologated, for instance, for the Volkswagen Polo 1.4 16V in Group A (gr.A) under homologation certificate A-5568. The kit enables precise rear toe setting and prevents beam axle deflection under heavy racing loads, ensuring toe angles remain stable and consistent.

The arms are fabricated from 25 mm 4130 CrMo (25CroMo4) alloy steel tubing with precision TIG welds. The kit includes two adjustable control arms, weld-on axle brackets for both ends, and necessary mounting hardware. The brackets are welded directly to the rear beam axle. An in-situ double-adjuster mechanism allows accurate toe alignment adjustments directly on the vehicle without disassembling the arms.

Features:

• Homologation: Homologated e.g. for Polo 1.4 16V in Group A (gr.A) under homologation certificate A-5568.
• Construction: Fabricated from 25 mm 4130 CrMo (25CroMo4) steel tubing, TIG-welded.
• Adjustability: In-situ double-adjuster mechanism for fast and precise toe alignment.

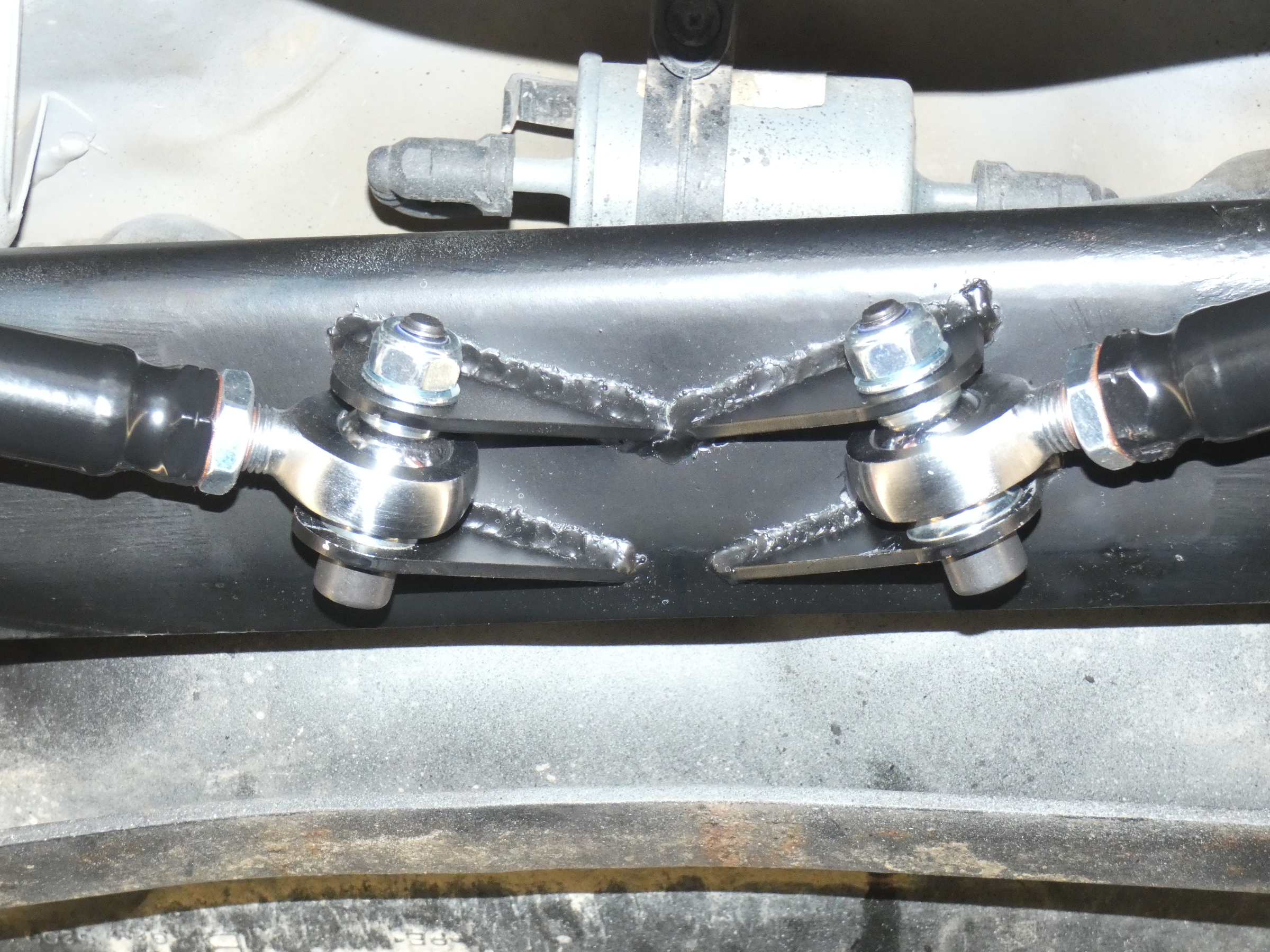

• Mounting: Weld-on steel brackets welded directly to the rear axle beam for a rigid, deflection-free connection.
• Bearings: Play-free motorsport spherical rod ends with 52100 bearing steel balls and self-lubricating PTFE liners.
• Applications: Circuit racing, rally, and competition chassis builds.
• Material Certificate: Fabrication certificate available upon request for technical inspection or homologation.

Package Includes:

• 2 pcs adjustable 25 mm 4130 CrMo (25CroMo4) toe arms (compliant with homologation)
• Weld-on steel brackets for both ends
• Motorsport uniball rod ends and jam nuts
• Mounting hardware and fasteners

Technical Specifications:

• Tube Outer Diameter: 25 mm
• Tube Material: 4130 CrMo (25CroMo4)
• Bracket Material: Steel (weldable)
• Bearing Ball Material: 52100 bearing steel
• Bearing Liner: PTFE

Compatibility:
