Description

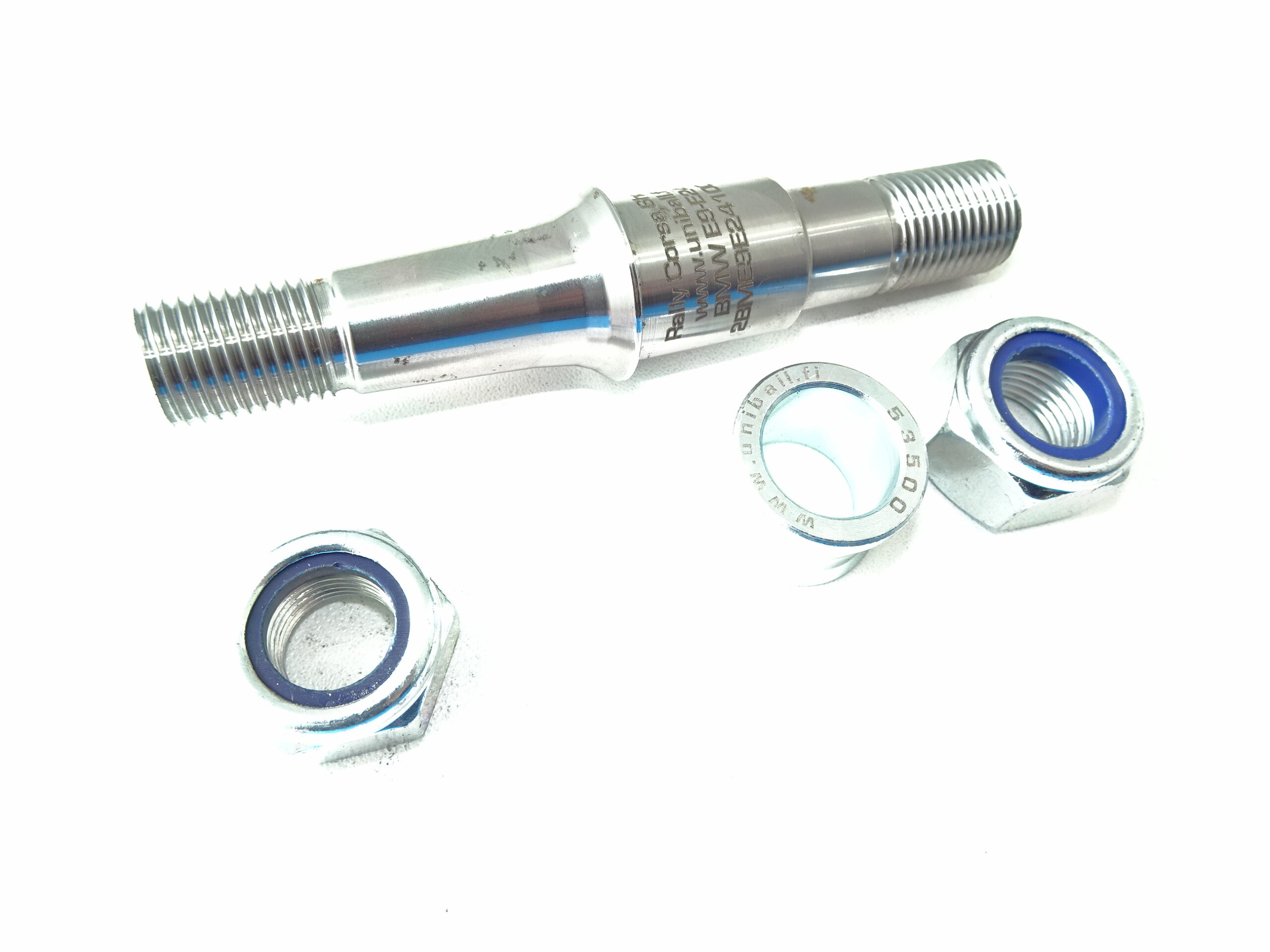

This is especially intended for the construction of the lower ball joint of the BMW E9-E24 and E8x PRO series. This pin goes directly to the 20mm joint. The radius of the shape coming up against the joint is 20mm according to the ball of the joint.
- material 25cromo4 and CNC machined, no sharp inner corners (no fracture lines)!
- 20mm pin thickness
- 107mm maximum length
- 14×1.5mm lock nut at the top end (thread approx. 20mm long)
- cone approx. 14mm at the thinnest point, approx. 16mm from the thickest point (cone approx. 18mm long)
- under the cone approx. 30mm diameter and approx. 9mm thick shoulder
- approx. 21mm long 20mm straight part
- lower end locking nut thread M16x1.5
This set comes with nylock lock nuts and a sleeve that goes under the ball joint.
This applies to at least the following lower ball joints (the list will be increased when testing)
- BMW E9
- BMW E24
- BMW E8x Rally Corsa Shop PRO kit (NOT STANDARD E8x)
